Ⅰ. Product Overview:

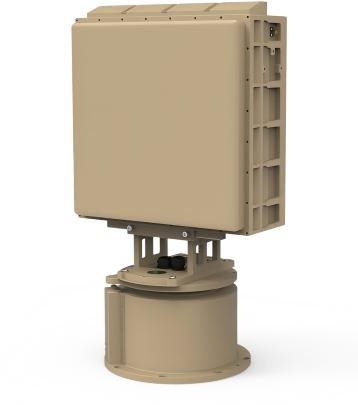

The LKXR-RD108 series is an X-band medium-range phased-array radar for low-altitude surveillance. It employs all-solid-state, fully coherent, pulse-Doppler technology and integrates machine-learning/AI-based intelligent recognition algorithms to detect, track and identify “low, slow & small” targets (e.g., drones, ultralight aircraft, paragliders) in all weather. A hybrid scanning mode—2-D electronic beam steering plus mechanical rotation—delivers 360° full-airspace coverage at an outstanding price/performance ratio. Three performance levels are offered: 3 km, 5 km and 8 km detection range against 0.01 m² RCS targets.
Ⅱ. Product Features
• All-solid-state phased array:
no rotary joints or high-voltage devices; MTBF > 20,000 h and low maintenance.
• AI-based classification:
on-board GPU+FPGA compute, classifies drones vs. birds vs. balloons with <2 % false-alarm rate.
• Hybrid scanning:
mechanical rotation for fast 360° search, electronic beam steering for high-precision stare & track; seamless switch between search and TAS tracking.
• Ultra-short blind zone:
as low as ≤100 m for ground-skimming or sea-skimming targets.
• Compact & lightweight:
≤30 kg, man-portable; supports fixed mast, vehicle mount or tripod deployment.
• Ruggedized:
‑40 °C to +70 °C operating range, salt-fog, fungus and humidity resistant per GJB150A.
• Green & efficient:
peak power ≤530 W; accepts 24 V DC or 220 V AC; optional PV+battery kit for field use.
• Open interface:
standard Gigabit Ethernet, supports TCP/UDP, HTTP, ONVIF and Restful API for easy integration into C-UAS, ADS-B or EO/IR systems.
Ⅲ. Qualification
|
Parameter
|
108A
|
108B
|
108C
|
|
Frequency Band
|
X-band
|
|
Installation method
|
Single-face array + turntable
|
|
Detection Range (RCS=0.01 m²)
|
≥5 km
|
≥8 km
|
≥3 km
|
|
Blind Zone
|
≤200 m
|
≤200 m
|
≤100 m
|
|
Coverage
|
Azimuth 360°; Elevation 0°–30° (software configurable)
|
|
Velocity Range
|
1 m/s – 100 m/s
|
|
Range Accuracy
|
<10 m
|
|
Azimuth Accuracy
|
<0.5°
|
|
Elevation Accuracy
|
<0.5°
|
<0.5°
|
<1°
|
|
Search Update Rate
|
≤3.2 s
|
≤3.8 s
|
≤3.0 s
|
|
TAS Track Update Rate
|
≤0.5 s
|
|
Weight
|
≤28 kg
|
≤30 kg
|
≤28 kg
|
|
Power Supply
|
DC 24 V / AC 220 V auto-ranging
|
|
Power Consumption
|
≤330 W
|
≤530 W
|
≤250 W
|
|
Dimensions (W×H×D)
|
≤586 mm × 316 mm × 240 mm (excl. handles & connectors)
|
|
Operating Temperature
|
-40 °C to +70 °C
|
-40 °C to +60 °C
|
-40 °C to +70 °C
|
|
Interface
|
Gigabit Ethernet ×2 (RJ45)
|
Ⅳ. Selling Points
• Longest range:
up to 8 km for 0.01 m² drones—>20 % better than competing products in the same class.
• High accuracy:
<10 m range, <0.5° azimuth/elevation—enables precise cueing of EO/IR or counter-UAS effectors.
• Fast reaction:
search frame ≤3.8 s, TAS update ≤0.5 s, acquisition-to-track <3 s.
• Cost-effective:
phased-array performance at legacy mechanical-radar prices—>30 % lower than market average in volume orders.
• True portability:
≤30 kg, <0.02 m³ folded volume; two units fit in one SUV.
• Field-friendly:
≤530 W power draw; runs directly from a vehicle 24 V battery—no generator required.
• Ecosystem ready:
Windows/Linux/Kylin SDKs available; already integrated with 20+ leading EO, jamming and GNSS-spoofing vendors.
